The growing popularity of polyolefin hot melt adhesive film among industries is due to its remarkable performance properties and multifunctionality. Polyolefin-bearing hot-melt adhesives, like other thermoplastics, possess a high number of favorable qualities, including fast cure, good adhesion, and resistance to the environment’s actions, which make them suitable for use in industries, packaging, and especially the automotive industry. Therefore, the purpose of this blog is to adequately enlighten the reader or the researcher on the features of polyolefin hot melt adhesive film, its chemical makeup, characteristics, as well as its application. Readers will therefore benefit from a practical perspective on how this adhesive technology can improve production efficiency and product quality in various industries.

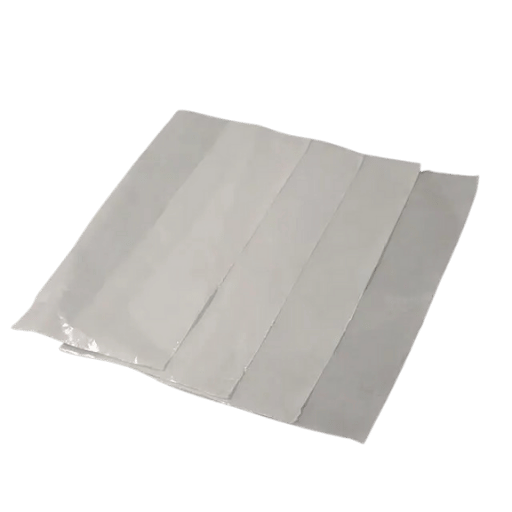

What is Hot Melt Adhesive Film?

What is Hot Melt Adhesive Film?



How Does Hot Melt Adhesive Work?

A hot melt adhesive works by melting and first covering the surfaces that are to be glued together, after which it cools down and forms a bond with the attached surfaces. The very first form of the adhesive is a solid thermoplastic. The temperature is then raised sufficiently to place it into a molten condition so that it can, for example, be placed onto the desired surfaces. It takes a few seconds only for the glue to cool and set, which greatly improves the bonding process. Such factors help make hot melt adhesives very effective and easy to use for numerous applications in various industries, more so in cases where time and effectiveness are a consideration.

Main Applications of Hot Melt Adhesive Films

  • Manufacturing: Used widely for assembly activities in appliances, electronics, and textiles.
  • Packaging: Provides tight seals for boxes and cartons for safety in transportation.
  • Automotive Sector: Used for the bonding of all the interior and exterior parts for lightweight automobiles.
  • Woodworking: Used during the edge banding and lamination stages of the furniture-making industry.
  • Product Assembly: Appropriate for non-load-bearing assembly tasks of toys, crafts, and other consumer goods.

Materials Used in Polyolefin Hot Melt Adhesive Films

  • Polyethylene (PE)
  • Polypropylene (PP)
  • Ethylene-Vinyl Acetate (EVA)
  • Amorphous Polyalphaolefins (APAO)
  • Tackifiers and Stabilizers

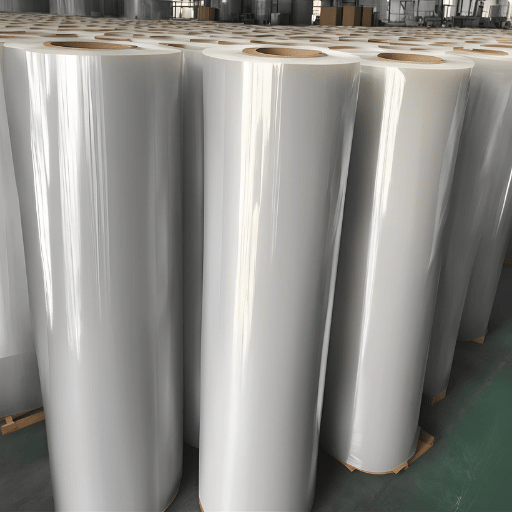

What are the Benefits of Polyolefin Hot Melt Adhesive?

What are the Benefits of Polyolefin Hot Melt Adhesive?

Advantages of Using Polyolefin Hot Melt Adhesive

  • Versatility Polyolefin hot melt adhesives are effective in bonding assorted metals, plastics and even textiles. Hence, these adhesives can be employed in so many industries.
  • Thermal Stability Bonding tapes display much greater heat resistance in comparison to adhesive products, which allow high temperature usage of such tapes without damage.
  • Fast Curing This enables faster setting times which helps to increase the efficiency of the production by minimizing downtimes while carrying out the manufacturing processes.
  • Environmental Resistance They have high durability to water and other chemicals and therefore can be used in circumstances where the supremes are not useable.
  • Flexibility This provides a degree of movement and vibration without cracking or losing its adhesive properties, which would account for the flexibly bonded joint.

Comparison with Other Adhesives

  1. Strength and Durability: Polyolefin hot melts frequently commendably surpass the properties of water-based or solvent-based adhesives in bond strength and durability over broad temperature ranges.
  2. Application Efficiency: Polyolefins require application processes that are much simpler and have shorter curing times without the need for extra curing devices compared to epoxy and polyurethane adhesives.
  3. Cost-Effectiveness: Usually more affordable than advanced adhesives, these are suitable and economical, having a reasonable cost/ performance ratio.

Resistance of Polyolefin Hot Melt Adhesive Films

  • heat resistance: For temperatures between 40 C and 120 C, it still preserves bonding properties, making it possible to select it for both cold and hot conditions.
  • Chemical Resistance : Offer durability to a wider range of chemicals such as oils, acids and alkalis to extend the life of the bond.
  • Moisture Resistance: It protects against water penetration which is essential in order to provide sufficient structural integrity in moist or wet environments.

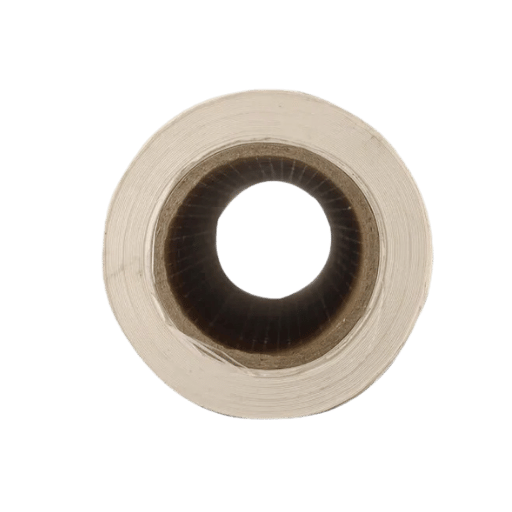

How to Choose the Right Hot Melt Adhesive Film?

How to Choose the Right Hot Melt Adhesive Film?

Factors Influencing the Thickness of Adhesive Films

Some of the most important factors affecting the thickness of adhesive films are the material being bonded, the purpose of a film, and the environment where it is expected to function. A porous substrate requires thicker adhesives for proper penetration and bonding. Furthermore, applications with high loads may require thicker adhesives for better structural strength. Also, environmental conditions like humidity and temperature determine the thickness selection in order to maintain the availability of adhesion.

Determining the Width Needed for Your Project

The thickness of adhesive films varies from one project to another and relates to the working area of the substrates and also the accuracy desired in the application. It is important to assess the dimensions of the substrates and their overlap in order to avoid under or oversizing the coverage. In industrial use, standard widths that match the preset width of automated machinery may simplify the task and save on materials, leading to an effective production process.

Importance of Composition in Adhesive Films

The makeup of adhesive films holds a cascading effect on their functional characteristics, such as bond strength, flexibility, and endurance to environmental elements. A properly developed formulation allows better compatibility with different substrates and, thus, better adhesion and strength in different conditions. The data shows that Enhanced composite structures with new polymers and additives encompass different thermal and chemical resistance capabilities depending on the core structure. The knowledge on how a composition affects the particulars of suitability of application dictates the amount of efficiency so that the demands targeted for a specific project is achieved accurately.

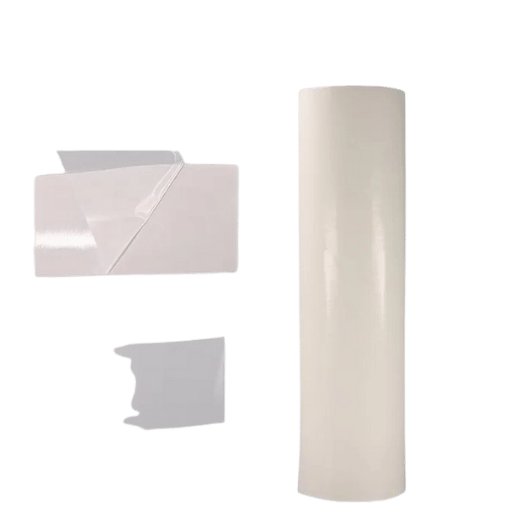

What is the Processing of Polyolefin Hot Melt Adhesive?

What is the Processing of Polyolefin Hot Melt Adhesive?

Typical Processing Temperatures

The primary processing temperature for polyolefin hot melt adhesive films is typically between 160°C and 200°C. However, this is dependent on the specific formulation as well as the application parameters. It is critical that the temperature settings are always optimal to enhance melting and bonding without loss of properties of the adhesive.

Packaging of Hot Melt Adhesive Films

Contaminations and damages during transport and storage are avoided through protective layers and covering; thus hot melt adhesive films are generally rolled and packed inside boxes. Where necessary, temperature-controlled conditions allow for the unearthing of the protective layers so as to ensure that the integrity of the adhesive is preserved, and there’s no premature performance or degradation of the properties of the adhesive.

Processing Methods for Different Film Types

Different Application And Working Methods Have Different Processes Based On The Type Of Polyolefin Hot Melt Adhesive Film. These methods include extrusion coating, where heat is integrated through a die to apply adhesive directly onto surfaces, laminating which is a layer bonding under heat and pressure, and spray application ideal for surfaces of odd shapes. Each application is compatible with the adhesives and its characteristics based on the end-use application.

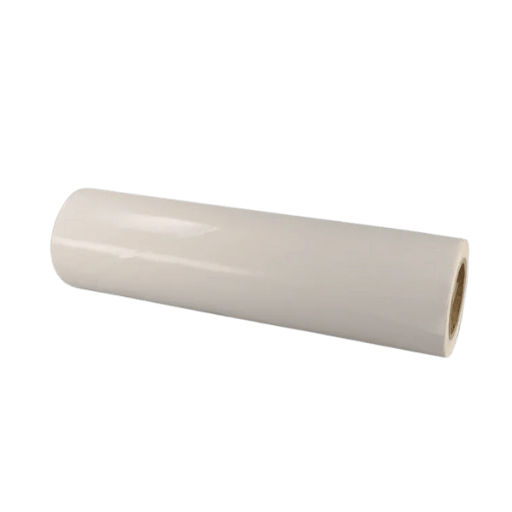

Where Can You Use TPU Hot Melt Adhesive Film?

Where Can You Use TPU Hot Melt Adhesive Film?

Best Applications for TPU Hot Melt Adhesive Film

Hot-melt adhesive films based on TPU can be efficiently deployed across diverse industrial applications owing to their versatility. They are particularly useful in sewing fabrics in the textile and garment sectors as they possess good stretch and elasticity along with good stretchability and conformability, which is especially the case for sportswear and undergarments. Furthermore, TPU adhesive films are also employed in the automotive industry for the assembly of interiors as well as in the footwear industry where their high abrasion and adhesion properties are duly appreciated.

Differences Between TPU and Polyolefin in Applications

TPU and polyolefin hot melt adhesive films are both applied for bonding purposes, but they differ significantly in their properties and suitability for specific applications. TPU is very elastic, has good abrasion resistance, and is transparent, which makes it an ideal material for flexible and durable applications such as in the textile and footwear industries. On the contrary, polyolefin is typically stiffer and cheaper, which makes it desirable in applications where non-expandable substrates and packaging are required. The decision as to which of these adhesives to use is most times influenced by the desired performance characteristics and the characteristics of the materials to be bonded.

Suitability of TPU Hot Melt Adhesive for Washable Products

TPU hot melt adhesive films are particularly suitable for washable articles due to their exceptional wash resistance and durability to repeated laundering conditions. This makes them suitable for the bonding of washable fabrics and garments. The stability of TPU in diverse environmental conditions allows the glue to maintain its structure and bonding characteristics, which guarantees reliability in situations where the strength of the bond formed in the presence of water and detergents has to be retained for a long time.

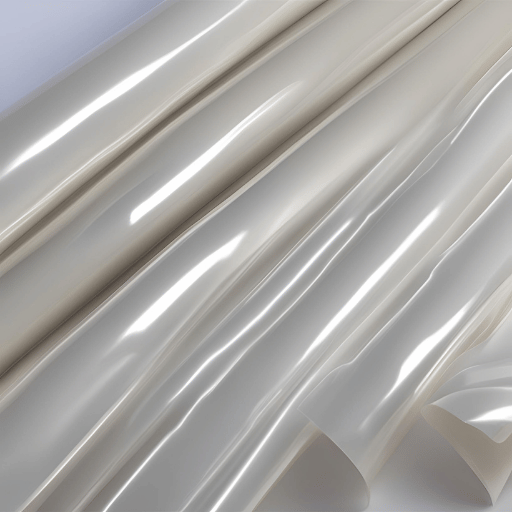

How to Achieve the Best Bond with Hot Melt Adhesive?

How to Achieve the Best Bond with Hot Melt Adhesive?

Compatible Surface Substrates for Hot Melt Adhesive

Hot melt adhesives are used in various industries because they can bond a wide variety of surface substrates, some of which may be porous and others non-porous. Such substrates include fabrics, leather, plastics, metals, ceramics, and wood. The compatibility largely depends on the type of hot melt adhesive used, as each has specific bonding characteristics. An example is hot melts containing polyamide wherein the bonding area is textile. On the other hand, ethylene-vinyl acetate (EVA), such as in rubber blends, has good adhesion to some types of packaging materials. Surface preparation, including cleaning and drying, enhances the adhesive performance on these substrates.

Effect of Temperature on Hot Melt Adhesive Bond Strength

To begin with, application temperature has the greatest impact on all the important factors affecting hot melt adhesives. In general, application temperature is in the range of 120%C to 180%C. Important adhesive characteristics such as viscosity, flow, and penetration into substrate surfaces are dependent on application temperature. The required temperature enables good melt flow and wet-out, which are necessary for the bond to reach the hen strongest. However, poor adhesion may be the result of insufficient heat, as in the case of poor wetting, while in the event of high temperature, the adhesive properties become compromised. The rate at which the substrate is cooled also determines the bond strength, as slightly lower temperatures are determined to be optimal as they allow the adhesive to set without stress being added to the area.

Tips to Improve Bond Strength

  • Surface Preparation: To ensure bonding efficiency, check that all substrates are clean, dry, and devoid of dust or grease before proceeding.
  • Optimal Temperature: In order to achieve the desired viscosity and the capacity to wet the adhesive, the substrate and the adhesive should always be within application temperatures.
  • Uniform Application: Weak areas are to be avoided on the surface of the joint by applying the adhesive uniformly over the surface ensuring joints of consistent thickness.
  • Pressure Application: During the bonding process, pressure is applied to promote the wetting and penetration of the adhesive into the bond interface.
  • Adequate Cure Time: Cool down and curing time must be allowed to pass in order for the adhesive to fully set before the bond is later stress guised.
  • Environmental Considerations: Do take into account the humidity and condition of the environment since these factors affect the time the adhesive sets and the bond strength formed.

When these guidelines are observed when using hot melt adhesives, the bond strength can be greatly improved, resulting into improved and tougher assemblies in different applications.
